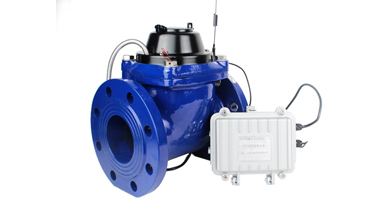

Shengda Woltman Water Meter Pulse Output Dn50 Bulk Hot Water Meters

Product Categories

Kaifeng Shengda Water Meter Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Shengda Woltman Water Meter Pulse Output Dn50 Bulk Hot Water Meters

Name: Shengda Woltman Water Meter Pulse Output Dn50 Bulk Hot Water Meters
Brand: Shengda
Price: 1 USD

Quality Shengda Woltman Water Meter Pulse Output Dn50 Bulk Hot Water Meters for sale

warranty : 1 year

customized support : OEM

Place of Origin : Henan, China

Brand Name : Shengda

Model Number : LXLCY-50

Flow Rate : 40m3/h

Measurement Range : DN40-600

type : Multi-jet meters

material : Iron

Connectivity : FLANGED

Protection Class : ip68

Product name : Shengda woltman water meter pulse output dn50 bulk hot water meters

Keyword : Pulse output Woltman Water Meter

Standard : ISO 4064 ClassB

Accuracy : Class b

Communication mode : Wired

Certificate : ISO9001/ISO14001/OHSAS18001

Feature : Competitive

Material : Cast Iron

Installation : Horizonal

Connection : Flange Connection

Contact Now

Shengda woltman water meter pulse output dn50 bulk hot water meters

Why Choose Us

Product Description

MBUS remote water meter is used to measure the total flow of water flowing through the pipeline. It is a magnetic transmission dry type (or wet type) direct reading smart water meter. The M-BUS remote water meter is equipped with a direct reading remote transmission module, which uses the photoelectric direct reading meter reading technology to directly read the current dial display number, and the remote meter reading accuracy is high.

Details Images

Smart chip

The smart chip has a data storage function, which does not affect the normal recording of data when the data line or bus is disconnected and the system is powered off.

Detachable structure

The base meter and the sensor part adopt a split and detachable structure, which is convenient for maintenance.

Waterproof, antimagnetic interference

The whole remote water meter is sealed and waterproof, and can be used in a humid environment.

Accurate data

According to the user's needs, the design reading is accurate to 0.001M3, 0.01M3, 0.1M3, 1M3, 10M3 water.

Specification

Work Voltage:	24V-42V
Stand-by current:	≤1.5mA
Working current:	≤20mA
Transmission distance:	1000M
Communication transmission rate:	1200bps-9600bps
Communication protocol:	DL/T protocol CJ/T188 protocol MODBUS protocol
Working environment:	temperature 0 °C ~ +60 °C
Humidity:	≤ 95% RH

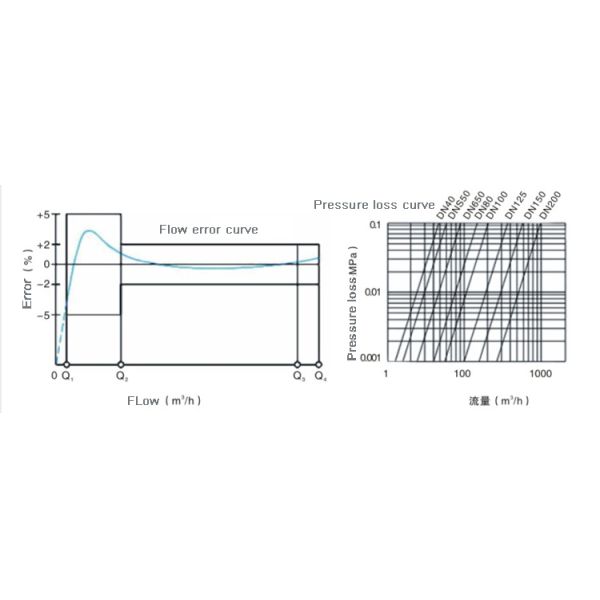

Performance curves:

A .Low area(Q1≤Q＜Q2)
maximum allowable error is ±5%

B .High area(Q2≤Q≤Q4)
When water temperature ≤30℃,maximum allowable error is ±2%
When water temperature ＞30℃,maximum allowable error is ±3%

Ordering precautions:

The smart water meter includes built-in batteries. Before placing an order, please communicate the details with the business manager. Please do not place order directly on the platform, as the smart product requires checking the specific product details and selecting a special channel freight forwarder for transportation.

The lead time on the website is inaccurate. Please communicate with our business manager to confirm the exact time.

Company Profie

Our company now has 107 certificates, including 10 patents, CE, ISO9001, CMMI3, ISO14001, ISO18001, etc.

If you need more details, please contact us to get the whole catalog.

Our company is the only manufacturer of water meter and flow meters in China. We have equipments for water meters and flow meters, welcome to visit to our factory!

Product packaging

Customer Photos

FAQ

1.Can we customize our logo, please?

Yes, sure. We support OEM as your detailed requirements.

2.What payment do you support?

We support online trade, T/T, Paypal, western union, wechat, alipay, etc.

3.What is the warranty of your product?

Usually we support 12 months warranty from delivery.

4.Do you support return or change product if any problem with your product?

Yes, we support change or return back the product if there is quality problem with our products.

5.Do you have technical support?

Yes, we give technical support when you need; and we give 7*24 after sales service once you become our customer.
